Can you use a splitter on CAT5?

If you’re setting up a home or office network and you’re running low on Ethernet ports or cables, a common question arises: can you use a splitter on a CAT5 cable? At first glance, this might seem like a simple “yes or no” question, but the technical nuances of Ethernet cabling make it a bit more complex—and more interesting—than that.

In short, yes, you can use a splitter on CAT5 cables, but there are important limitations and considerations you need to be aware of. Let’s dive into how Ethernet cable splitters work, when they’re useful, and what alternatives might be better suited for your networking needs.

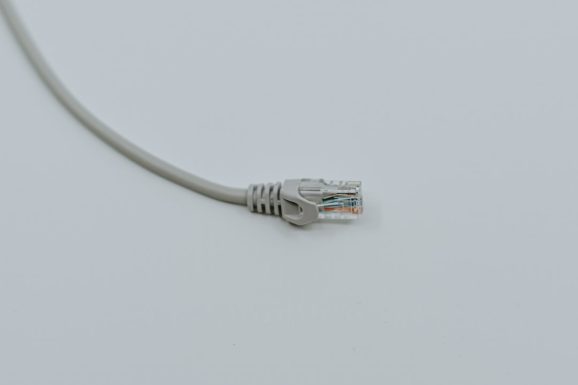

Understanding CAT5 Cabling

Category 5 (CAT5) cables are a type of twisted pair cabling used extensively in Ethernet networks. They are designed to carry data at speeds up to 100 Mbps (CAT5) or 1 Gbps (if it’s the enhanced CAT5e version). A standard CAT5 cable contains 4 twisted pairs, totaling 8 wires.

Interestingly, not all the wires are always used in lower-speed Ethernet configurations. Fast Ethernet (100 Mbps) utilizes only 2 of the 4 pairs, while Gigabit Ethernet (1000 Mbps) requires all 4 pairs. This difference is crucial when considering whether or not a splitter will work in your setup.

What Is an Ethernet Splitter?

An Ethernet splitter is a small device that allows you to send two Ethernet signals through a single CAT5 cable. It does this by physically separating the pairs of wires in the cable. Since 100 Mbps Ethernet only uses two pairs, the remaining pairs can potentially be used to carry a second signal.

But here’s the trick: Ethernet splitters do not double your bandwidth or create a network switch. Instead, they rely on there being two splitters—one at each end of the cable. Each device only reroutes the unused pairs, letting two Ethernet connections run over a single cable span.

When Can You Use a Splitter?

Using a splitter can be practical in very specific scenarios, such as:

• Running Ethernet cables through finished walls: where pulling a second cable is just not feasible.
• Low-bandwidth network needs: like connecting printers or IoT devices that don’t require gigabit speeds.
• Temporary setups: like testing workstations or short-term office expansions.

However, it’s essential to note that if you’re planning to use Gigabit Ethernet—which leverages all four wire pairs—a splitter won’t work. Attempting to use one in a gigabit network can severely degrade performance or stop the connection altogether.

Splitter vs Network Switch: What’s the Difference?

People often confuse Ethernet splitters with network switches, but they serve very different purposes.

• Ethernet Splitter: A passive device that physically divides wire pairs. Requires one at each end. No smart management.
• Network Switch: An active device that handles data traffic intelligently, offers multiple ports, and supports full-speed communication.

While a splitter is cheaper and simpler, a switch is a far more flexible and scalable solution.

Better Alternatives to Consider

If you’re out of ports but still want to maintain full network speeds and flexibility, it might be worth considering these alternatives:

1. Network Switch: Adds multiple ports and manages data intelligently. Ideal for expanding networks.
2. PoE (Power over Ethernet) Splitters: Useful if you want to power devices like cameras or Wi-Fi access points over the same cable.
3. Wireless Extensions: In areas where running cables is impractical, wireless range extenders may be a smarter option.

Conclusion

So, can you use a splitter on a CAT5 cable? Yes—but only under the right circumstances. They’re a handy and inexpensive tool when you need to run two 100 Mbps connections over a single existing cable. But for gigabit speeds, scalability, and reliability, you’re better off investing in a network switch or running additional Ethernet cabling.

Understanding the limitations and potential pitfalls of Ethernet splitters will help you make the best networking choices for your home or office. And remember: in networking, as in life, sometimes what looks like a shortcut might actually slow you down in the long run.
